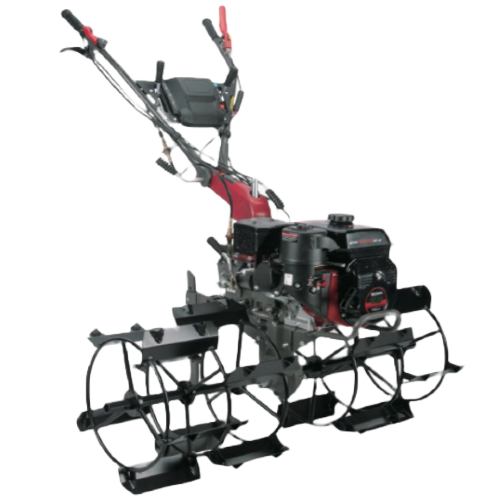

WEIMA Multi-Functional Rotary Tiller (Lightweight Series)
Scope of application:
Designed with six speed gearbox ,making it ideal for attaching full range of accessories, including
rotors, grass cutters, ditchers, sprayers, reapers and water pumps, also with the same function of
front tilling, Which is designed to meet the requirements of users seeking a multi-function machine.That’s both practical and safe.
Features:
Newly-designed anti-mud start cover prevents excessive foreign matters from entering the air inlet port. It’s ideal for tilling on muddy lands.
Newly-designed handle type drain plug on carburetor allows easy operation and convenient
maintenance.
Prolonged air filter prevents dust and allows extended lifetime.
Low fuel consumption, strong power output, high economic efficiency.
Normally-opened clutch allows safety and reliable design for stop while hand released.
Full protection fender provide well covering for entire terminal.
Description
| Model | WM1000N-6 | WM1000NA-6 | WM1000NB-6 |
| Body Size(mm) | 1600x1000x1050 | ||
| Tilling scope (mm) | 1000 | 1000 | 700-1050 |
| Tilling depth (mm) | >=100 | >=100 | 150-300 |
| Gear shiting | vice gear box (high)-1、0.1、0.2 | vice gear box(high)-1、0、1.0.2 | vice gear box(high)-1.0.1.0.2 |
| vice gear box ( low) -1、0.1.0.2 | vice gear box(low)-1.0.1,0.2 | vice gear box(low)-1.0.1、0、2 | |
| Driving model | gear | ||
| Transmission oil capacity (L) | 1.6 | ||
| Engine model | WM170F-2/P | WM173F diesel engine | WM178F diesel engine |
| Max power hp (kw)rpm | 7(5.1)/3600 | 5.2(4.05)/3600 | 6(4.67)/3600 |
| N.W/G.W(kg] | 75/85 | 85/95 | 96/106 |
| Packaging Dimension | 940x 580x 750 (mm) | 940x580x750 (mm) | 1100x700x850 (mm) |
| 40HO(set) | 144 | 144 | 102 |

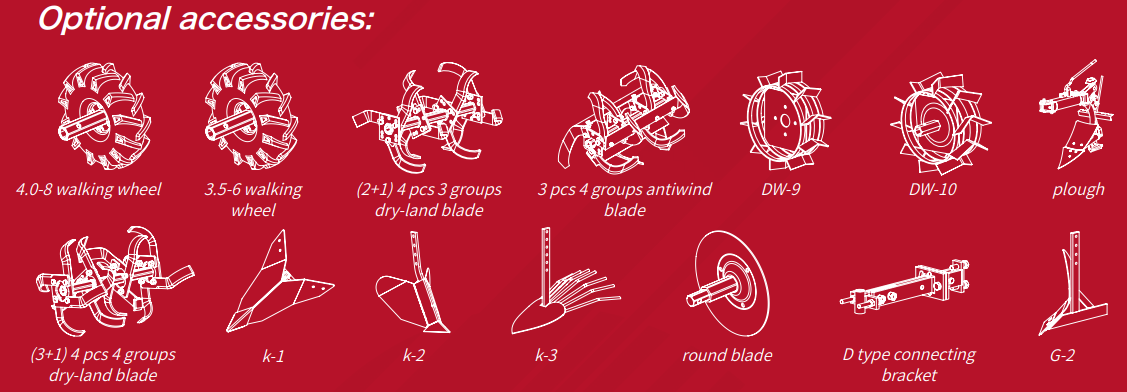

| Accessiors | 4 pcs, 3groups blades, 3.5-6 wheels | ||
