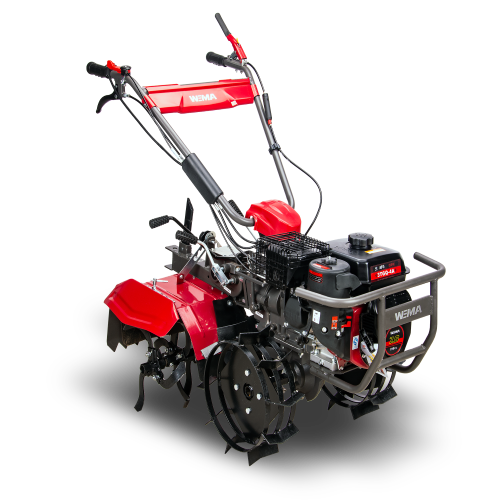

REAR TINE CULTIVATOR
Scope of application:
ldeal for rear tilling, ditching, ridging in all types of cash crops&spicy crops like sugarcane, cotton,
tobacco, grape, ginger, chili and green onion.etc.
Features:
. Handle can be adjusted as required
Adjust Support Wheel to Suit Different Soil and Terrain
Powerful Engine with Prolonged Bath Oil Type Air Filter Which Prevents Dust and Extends Lifetime
Compact and Attractive Structure
Easy Gear Shifting Allows Convenient Operation
Blades Numbers Optional to Suit Different Requirements.
Description
| Model | WMX620 | WMX620-1 | WMX720 |
| Body size (mm) | 1400x700x900 | 1450x650x900 | 1680 x660x 930 |
| Tilling scope (mm) | 620 | tllinig/620,ditching/290 | 600 |
| Tlling depth (mm) | >=100 | Tiling:>=100,ditching> 60 | 150-250 |
| Gear shifting | -1、0、1、2 | walking gearbox:-1、0、1、2. Tilling gearbox:-1、1 | 3、2、1、0、-1、-2
|
| Driving model | gear+chain | gear+chain | gear |
| Transmission oil capacity (L) | gear box:1.2 Tilling box:0.6 | gear box:1.2 Tiling box:0.6 | gear box:2,tilling box:0.4 |
| Engine model | WM170F-2/P | WM170F-2/P | WM170F-2/P |
| Max power hp (kw)rpm | 7(5.1) /3600 | 7(5.1)/3600 | 7(5.1)/3600 |
| N.W/G.W(kg)
|
100/130 | 100/130 | Traction part:75/9O
working part:40/50 |
| Packaging Dimension (mm) | 1280x740x720 | 1280x740x720 | Tractionpart850x720x600
Working part:720x550x450 |
| 40HQ(set’)
|
81 | 81 | 112
|

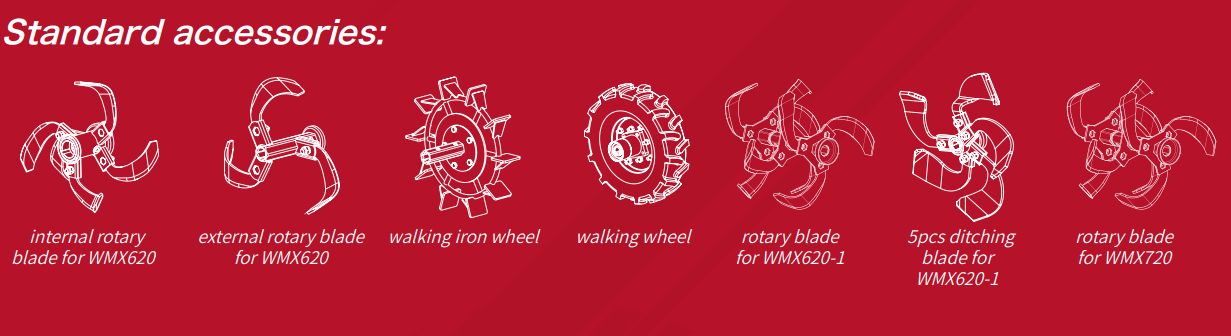

| Accessories | walking iron wheel,back rotary blade | 5pcs ditching blade, 3pcs 3 group rotary blade,1 set iron wheel, 1 set of 3.5-6 rubber tyre | 10pcs (2+1) rotary tilling blade
|
| Certification | CE | CE |
