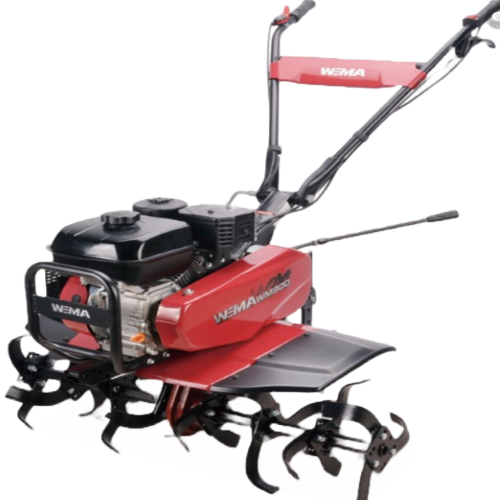

WEIMA Rotary Tiller for Intensive Use
Scope of application:
ldeal for demanding home gardeners to prepare the soil for sowing. This category features two
forward speed and one reverse, the perfect combination for the most difficult jobs.
Features:
Newly-designed anti-mud start cover prevents outer dust from entering the air filter. It’s ideal fo tilling on muddy lands.
Newly-designed handle type drain plug on carburetor allows easy operation and convenient maintenance.
Optional special air filter with new prolonged inlet pipe for 5% less fuel consumption.
Compact and light structure
Versatile for tilling on dryland and water field.
Description
| Model | WM500 | WM900 | WM900M | WM900M-3 |
| Body size (mm) | 1380*650*970 | 1390x800x1070 | 1390x800x1070 | 1390x800x1070 |
| Tlling scope (mm) | 500-1000 | 800-1200 | 800-1200 | 800-1200 |
| Tilling depth (mm) | 150-300 | 150-300 | 150-300 | 150-300 |
| Gear shifting | -1、0、2、1 | -1、0、2、1 | -1、0、2、1 | 1、2、3、0、-1 |
| Driving model | belt | belt | belt | belt |
| Transmission oil capacity (L) | 0.95 | 1.1 | 1.1 | 1.1 |
| Engine model | WM168FB-2/P | WM168FB-2/P | WM168FB-2/P | WM168FB/P |
| Max power hp (kw)rpm | 65(4.8)3600 | 6.5(4.8)3600 | 6.5 (4.8) 3600 | 6.5(4.8)3600 |
| N.W/G.W(kg) | 60/74 | 98/109 | 98/109 | 99/109 |
| Packaging Dimension (mm) | 820*375*780 | 860*410*780 | 860*410*780 | 860*410*780 |
| 40HQ(set) | 258 | 195 | 195 | 195 |
| Certificates | CE | CE | CE | CE |

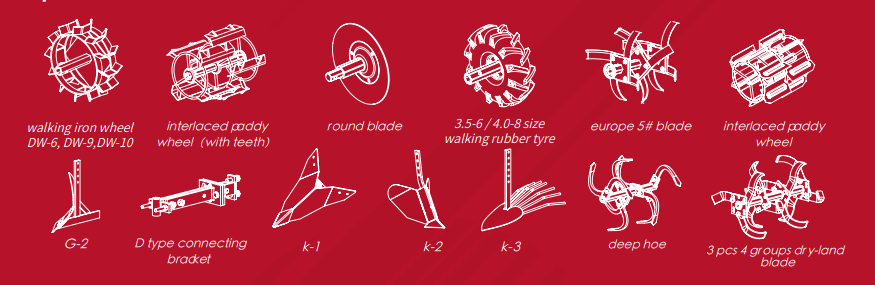

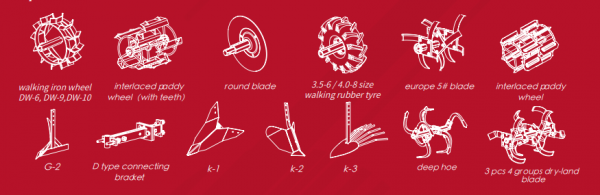

| Accessories
|
Europe type 5# 4pcs.3groups blades round discs,front wheel,350-6 rubber tyre Wheel | 3pcs.4 groups blades 400-8 wheels
|
||
