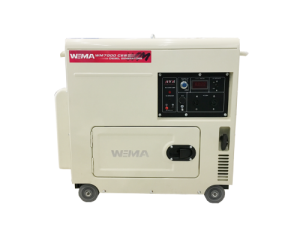

WM10000CE

Description

Type                  WM10000CE
frequency(Hz)            50
rated power(kW)          8.0
Maximum power(kW)       8.5
(A.C) (V)               230/400
(D.C) (V)                 12
(D.C) (A)                8.3
Rated speed (r/min)      3000
Power factor            1.0/0.8
Phase        Single phase / three phase
Series                   2
Excitation          Self-excitation
Insulation                F
Voltage regulation system                Automatic voltage regulation
Automatically extinguishes in the absence of oil      Yes
Oil cooler cooling                                   Yes
Fuel tank capacity (L)                               25
Operating time (h)                              ≥10（75%load）
Noise (dB (A)) 7 meters                             96
Engine：
Engine model                                 WM1100FE
Type                Single cylinder, four stroke, air cooled, direct injection
Continuous power (kW) (3000r/min)                  9.5
Bore × stroke(mm)                               100×85
Displacement(L)                                   667
cooling method                            Forced air cooling
Lubrication method                        Forced lubrication
Oil capacity(L)                                      2
Starting method                               Electric
Fuel model           Diesel: 0 # (summer) -10 # (winter) -35 # (severe cold)
Package:
Gross /Net(kg)                                   142/162
Outside dimenssion(L×W×H) (mm）           800×580×800（without handle）
Package dimenssion (L×W×H) (mm)            816×600×812
