Diesel Generator – Prime: 31.3KVA (25KW) Standby: 34.4KVA (27.5KW)
RATINGS DEFINITION
PRIME POWER
Prime Power is available for an unlimited number of annual operating hours in variable load applications,in accordance with ISO8528-1
STANDBY POWER
The Standby Power is applicable for supplying emergency power for the duration of utility power interruption.No overload,utility parallel or negotiated outage operation capacity is available at this rating
Description

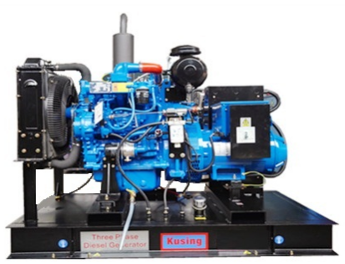

* Composed of Yangdong diesel engine and Stamford or Kusing,EVO, Marathon, Leroy somer alternator;
*12V DC start motor and storage battery; Brushless, Self-excited, IP23, insulation class H alternator;
*50℃ radiator as standard; Digitalstart panel control system as standard, digital auto-start panel is optional;

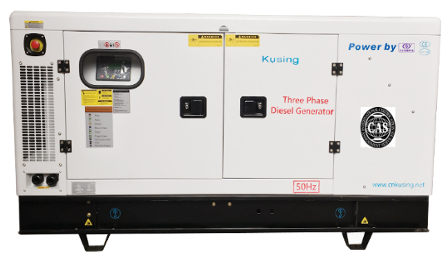

* 8-hour operation base tank; Optional open type or silent type;
*All generator sets are gone through rigorous testing before being released to the market place, including 50% load, 75% load, 100% load , 110% load and all protection function (overspeed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)
|
TECHANICAL DATA |
||
|
Generator set |
Genset Mod |
l K30250 |
|
Engine Bran |
Yangdong |
|
|
Engine Mode |
l Y4100D |
|
|
Alternator M |
oedel S184G25D10 |
|
|
Controller |
Kusing 6122 |
|
|
Switch |
CHNT 63A |
|
|
Internal prot |
ection IP22 |
|
|
Rate current |
(A) 45 |
|
|
Specific Fuel Consumptio |
235 |
|
|
Engine |
Model |
Y4100D |
|
NO. of Cylin |
der 4 |
|
|
Cylinder Typ |
eL |
|
|
RPM |
1500 |
|
|
Bore (mm) |
100 |
|
|
Stroke(mm) |
118 |
|
|
Speed Gove |
rnor Mechanical |
|
|
Start system |
(VDC) 12 |
|
|
Lub Oil Spec |
ification CF/15W40 |
|
|
Displacemen |
t(Ltrs) 3.707 |
|
|
Lub Oil Sum |
p Capacity(Ltrs) 13 |
|
|
Coolant Cap |
acity(Ltrs) 7.2 (only engine) |
|
|
Air inspiratio |
n Natural |
|
|
Alternator |
Phase |
3 |
|
Brand |
Kusing |
|
|
Model |
S184G25D10 |
|
|
3 Phase Voltage(1 Phase) Volts |
380-415(220-240) |
|
|
RPM/Freque ncy |
1500rpm/50hz |
|
|
Power Facto |
r(%) 0.8(lagging) |
|
|
Voltage Tole |
rance(+/- %) 1 |
|
|
Insulation Cl |
ass H |
|
|
Weight |
Open (KG) |
690 |
|
Silent(KG) |
856 |
|
|
Size |
OPen(L*W* H)mm |
1700*700*950 |
|
Silent(L*W *H)mm |
2250*980*1250 |
|
|
Noise(DBA) |
Open |
NA |
|
Noise( 7M at the Genset) |
80 |
|
|
Fuel Tank |
Capacity |
SUPPORT TO RUN 8 TO 10 HOURS |
Additional information
| prime | 10KVA（8KW ), 12.5KVA（10KW ), 15KVA（12KW ) |
|---|
