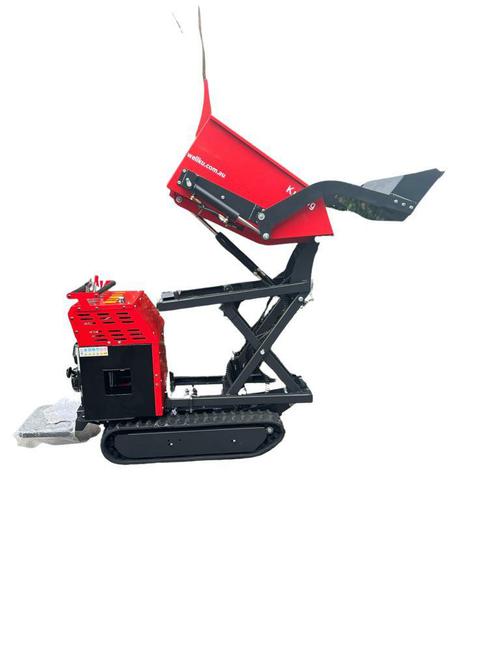

Hydraulic Mini Loader/ Dumper 500kg


  • Variable speed forward & reverse
  • Centrifugal clutch steering.
  • Hydraulic tipping & digging operation
  • Heavy duty bin
  • Tracks made from heavy duty rubber for safe use on paved surfaces.
  • Ground clearance 62mm
  • Turning distance 82cm
  • Maximum working pressure 200BAR
  • Colour #RAL3020
Add to wishlist 8Add to compare


Technical Specifications:

Model No. 750DLH
Engine Make Loncin OHV
Engine Displacement 270cc / 9HP
Engine Type Single Cylinder 4 Stroke Air Cooled
Fuel Tank Capacity 10 Litres
Maximum Carry Weight 500kg at maximum lift height
Maxium Bucket Load 200KG
30% Gradient Max 375KG
Lift Height 1.2M
Maximum Speed 6km/hour
Start System Recoil
Fuel Consumption Est. 1.5 L/hr
Engine Oil Specification 10W/30 Winter – 10W/40 Summer
Engine Oil Capacity 2 Litres
Hydraulic Oil Specification ISO 46
Hydraulic Oil Capacity 33 Litres
Fuel Specification ULP 91
Noise Level 92 DBA
Track Width 180mm
Bin Dimensions 1000L x 700W x 450H mm
Dimensions (foot rest in up position) 2330L x 850W x 1200H mm
Shipping Dimensions 1820L x 900W x 1350H mm
Weight 430kg
Shipping Weight 450kg
