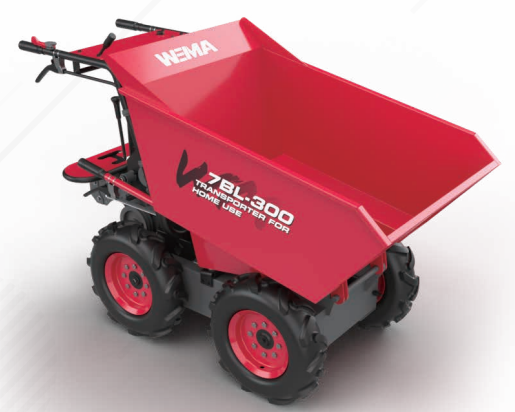

Mini Dumper/ Mini Carrier 4WD
Scope of application:
Designed for home users needing to transport all types of agricultural material such as fruits,
vegetables and fertilizers,this machine can also used for transportation of stone, gravel, concrete
and construction materials.
Features:
Full – time 4 WD. Strong adaptability,Front and rear wheels are stable and reliable through the
chain drive.
Configured with 4.0-8 deep tooth tyres, 130mm minimum ground clearance, suitable for various
complex road conditions and transportation.
The cargo box is installed at -1o degree, and the center of gravity of the whole machine is moved back to improve stability and prevent tipping.
With 3 forward and 1reverse gear transmission box. It is equipped with automatic parking function when shutdown.
Designed with sealed cargo box and 95° rolling-over angle, The transported goods can be fully dumped.
With adjustable cargo flip handle,this machine is more convenient and labor-saving
Description
Model WM7BL-300
| ITEMS | DESCRIPTION | ||
| Machine size(mm) | 1520x690x1050 | ||
| Cargo box size (mm) | 1000x690x690 | ||
| Net weight (kg) | <=150 | ||
| Loading capacity (kg) | 300 | ||
| Tyre | 4.00-8 | ||
| Wheel distance (mm) | 540 | ||
| Wheelbase (mm) | 560 | ||
| Minimum ground clearance (mm) | 130 | ||
| Minimum steering diameter (m) | <= 1 | ||
| Climbing abllity(no load) | <=25° | ||
| Tipping method | manual | ||
| Roling-over angle | <=80° | ||
|
Engine |
model | WM165F/P | W8OF |
| Type | Single cylinder.4 stroke,air forced | ||
| Power | 2.2kw | 1.5kw | |
| Starting method | Manual | ||
|
Transmission device |
Clutch | Belt tension | |
| Transmission | Gear sliding | ||
| Steering | Built – in unilateral brake steering | ||
| brake | internal expanding | ||
