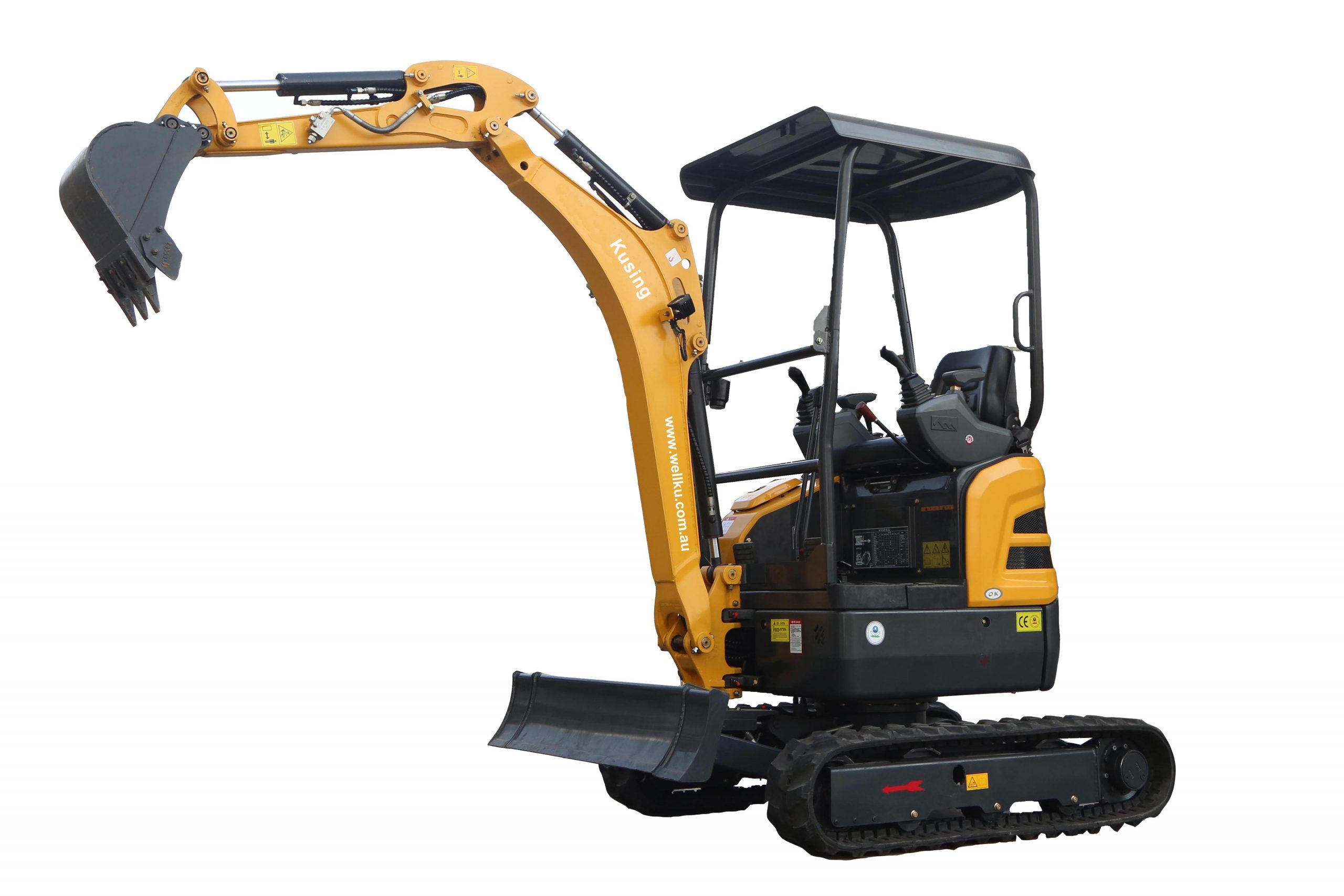

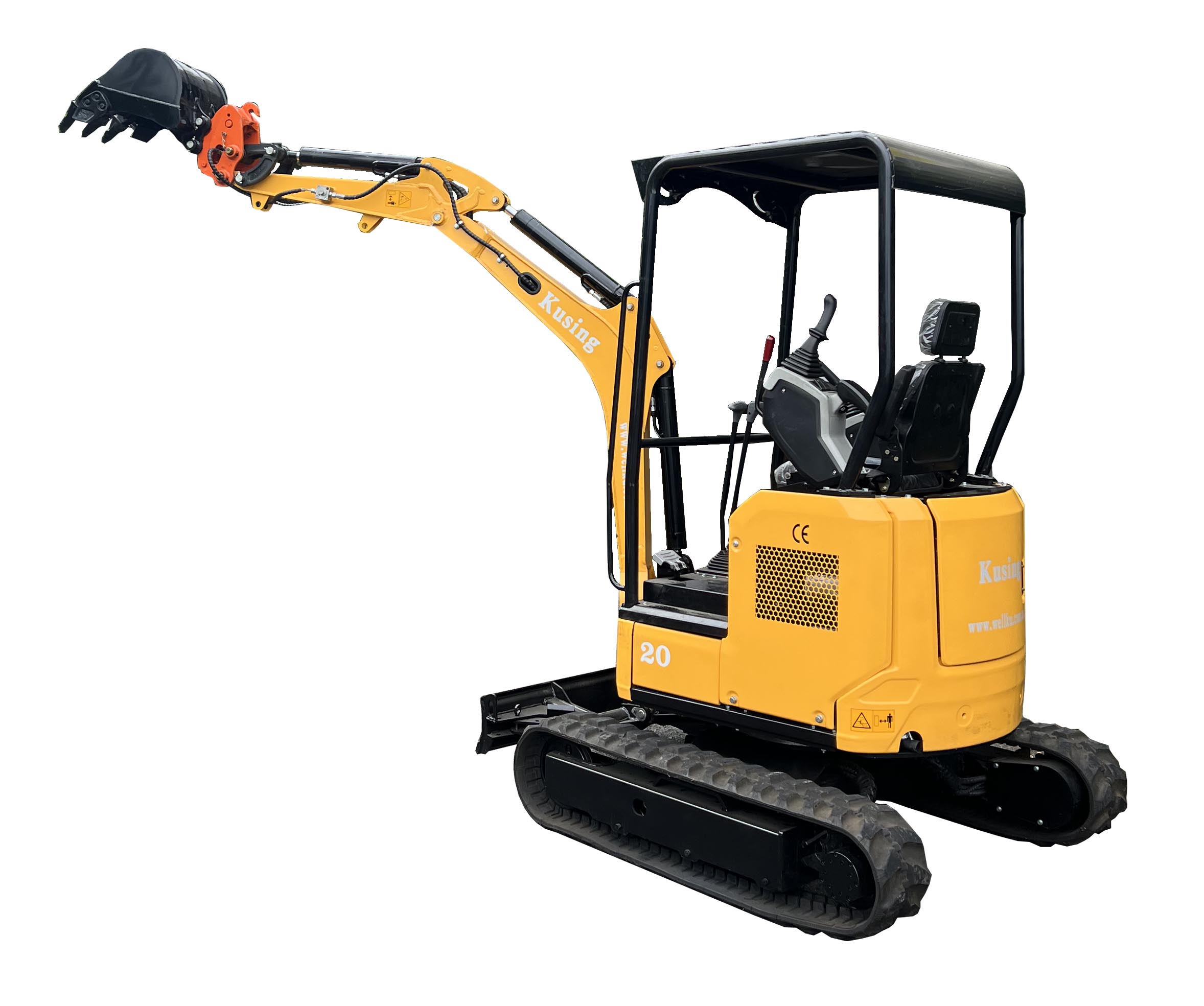

Mini Digger 1800KG
Mini Digger 1800KG
Wth Kubota&Yanmar diesel engines.
Improve work efficiency. Hydraulicpilot control,Accurately contral by the test.
Using load sensitive varlable plunger pump,smooth operation and flexible movement.
KU20 Variable-width undercarriage can be hydraulically retracted to access tight quarters
where handwork was once required，then easily extended to proviced a stableworking platform.
Description
Mini Digger 1800KG
Wth Kubota&Yanmar diesel engines.
Improve work efficiency. Hydraulicpilot control,Accurately contral by the test.
Using load sensitive varlable plunger pump,smooth operation and flexible movement.
KV20 Variable-width undercarriage can be hydraulically retracted to access tight quarters
where handwork was once required，then easily extended to proviced a stableworking platform.
| Moderl | KV20 | ||
| Type of Rops/Fops | Canopy | ||
| Type of Tracks | Rubber | ||
| Engine | YANMAR | ||
| Machine Rating | Operationg Range: | ||
| ITEMS | SPECIFICATIONS | ITEMS | SPECIFICATIONS |
| Engine Brand | YANMAR | Boom Lengh/mm | 1940 |
| Rated Power(KW/HP) | 17.8W/23.9HP | Arm Length/mm | 1260 |
| Rated Speed/rpm | 3000 | Max Digging Reach mm | 3800 |
| Number of cylinders | 3 | Max digging Depth mm | 2350 |
| Air intake way | Naturally Aspirated | Max Digging Height mm | 3200 |
| Displacement/cc | 1267 | Max Dumping Height mm | 2217 |
| Emissions Standards | 3TNV80F | Rear Swing Radius mm | 1048 |
| Cooling Way | Water Cooled | Mini Swing Radius mm | 1820 |
| Bucket Digging Force/KN | 14KN | Max Ground Digging Range | 3690mm |
| Arm Digging Force/KN | 10KN | Max Vertical Digging Depth | 1500mm |
| Bucket Capacity/m3 | 0.06 | Whole Dimension: | |
| Travel Speed/ km/h | 0-4.5 | Overall Length/mm | 3600 |
| Grade Ablity | ≤35°（70%） | Track Gauge/mm | 850 |
| Swing System | 10RPM | PLATFORM GROUND Clearance/mm | 400 |
| System Operating Pressure | 17-21 bar | Ground Contact length of Track | 1090mm |
| Fuel Tank Capcity /L | 12 | Wheel Base Tire /mm | 1100 |
| Operating Weight /Kg | 1800 | Wheel width Tire /mm | 1400 |
| Track Width /mm | 240 | Bucket width /mm | 600 |
| HYDRAULIC PUMP | PISTON PUMP | ||
