Prime:687.5KVA(550KW )Standby:756.3KVA(605KW)

*Composed of SDEC diesel engine and Stamford or Kusing,Marathon, Leroy somer alternator;

*24V DC start motor and storage battery;

*Brushless, Self-excited, IP23, insulation class H alternator;

*50℃ radiator as standard;

*Digitalstart panel control system as standard, digital auto-start panel is optional;

* 8-hour operation base tank;

*Optional open type or silent type;

*All generator sets are gone through rigorous testing before being released to the market place, including 50% load, 75% load, 100% load , 110% load and all protection function (overspeed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)

Add to wishlist Add to compare




Prime Power is available for an unlimited number of annual operating hours in variable load applications,in accordance with ISO8528-1


The Standby Power is applicable for supplying emergency power for the duration of utility power interruption.No overload,utility parallel or negotiated outage operation capacity is available at this rating

Generator set Genset Model SK35500
Engine Brand SDEC
Engine Model SC27G900D2
Alternator Moedel S354G560E9
Controller Kusing 6132
Switch CHNT 1000A
Internal protection IP22
Rate current(A) 990
Specific Fuel Consumption(G/KW.H)@100% Load 205
Engine Model SC27G900D2
NO. of Cylinder 12
Cylinder Type V
RPM 1500
Bore (mm) 135
Stroke(mm)  155
Speed Governor Electronic
Start system(VDC) 24
Lub Oil Specification CF/15W40
Displacement(Ltrs) 26.6
Lub Oil Sump Capacity(Ltrs) 55-65
Coolant Capacity(Ltrs) 48(only engine)
Air inspiration Turbocharged
Alternator Phase 3
Brand Kusing
Model S354G560E9
3 Phase Voltage(1 Phase) Volts 380-415(220-240)
RPM/Frequency 1500rpm/50hz
Power Factor(%) 0.8(lagging)
Voltage Tolerance(+/- %) 1
Insulation Class H
Weight Open (KG) 4450
Silent(KG) N/A
Size OPen(L*W*H)mm 3548*1400*1992
Silent(L*W*H)mm 20FT container
Noise(DBA) Open NA
Noise( 7M at the Genset) 80
Fuel Tank Capacity SUPPORT TO RUN 8 TO 10 HOURS

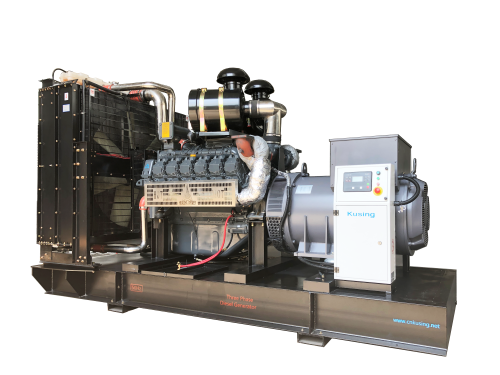

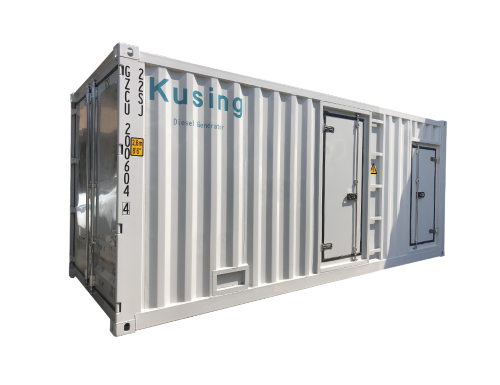

OPEN                                                                                      SILENT
