Prime:562.5KVA(450KW )Standby:618.8KVA(495KW)

* Composed of Cummins,SDEC,Deutz diesel engine and Stamford or Kusing, Marathon, Leroy somer alternator;

*24V DC start motor and storage battery;

*Brushless, Self-excited, IP23, insulation class H alternator;

*50℃ radiator as standard;

*Digitalstart panel control system as standard, digital auto-start panel is optional;*

* 8-hour operation base tank;

*Optional open type or silent type;

*All generator sets are gone through rigorous testing before being released to the market place, including 50% load, 75% load, 100% load , 110% load and all protection function (overspeed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)

Add to wishlist Add to compare

Description

RATING DEFINTION

PRIME POWER

Prime Power is available for an unlimited number of annual operating hours in variable load applications,in accordance with ISO8528-1

STAND BY POWER

The Standby Power is applicable for supplying emergency power for the duration of utility power interruption.No overload,utility parallel or negotiated outage operation capacity is available at this rating

TECHANICAL DATA
Generator set Genset Model CK34500 DK34500 SK34500
Engine Brand Cummins Deutz SDEC
Engine Model KTAA19-G6A BF8M1015CP-LA G3 SC27G755D2
Alternator Moedel S354G450D4
Controller Kusing 6132/Comap/Deepsea Comap/Deepsea Kusing 6132
Switch CHNT 1000A
Internal protection IP22
Rate current(A) 810
Specific Fuel Consumption(G/KW.H)@100% Load 197 196 205
Engine Model KTAA19-G6A BF8M1015CP-LA G3 SC27G755D2
NO. of Cylinder 6 8 12
Cylinder Type L L V
RPM 1500
Bore (mm) 159 132 135
Stroke(mm) 159 145 155
Speed Governor Electronic Electronic Electronic
Start system(VDC) 24 24 24
Lub Oil Specification CF/ 15W40 CF/15W40 CF/15W40
Displacement(Ltrs) 18.9 15.9 26.6
Lub Oil Sump Capacity(Ltrs) 50 48 55-65
Coolant Capacity(Ltrs) 30(only engine) 21(only engine) 48(only engine)
Air inspiration Turbocharged Turbocharged Turbocharged
H Phase 3
Brand Kusing
Model S354G450D4
3 Phase Voltage(1 Phase) Volts 380-415(220-240)
RPM/Frequency 1500rpm/50hz
Power Factor(%) 0.8(lagging)
Voltage Tolerance(+/- %) 1
Insulation Class H
Weight Open (KG) 3800 3800 4450
Silent(KG) 4300 4500 N/A
Size OPen(L*W*H)mm 3650*1500*2050 3600*1700*2100 3548*1400*1992
Silent(L*W*H)mm 5000*1800*2550 5000*1900*2300 20FT container
Noise(DBA) Open NA NA NA
Noise( 7M at the Genset) 80 80 80
Fuel Tank Capacity SUPPORT TO RUN 8 TO 10 HOURS

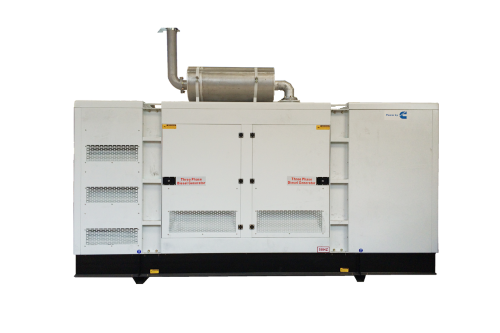

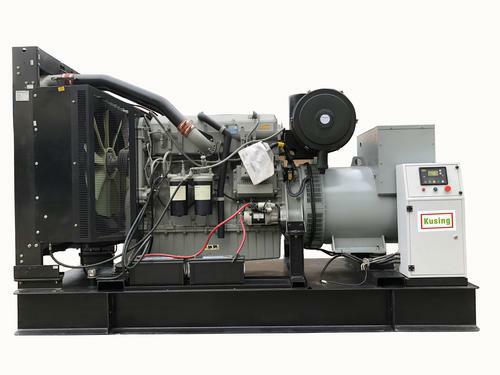

OPEN                                                                                                     SILENT
