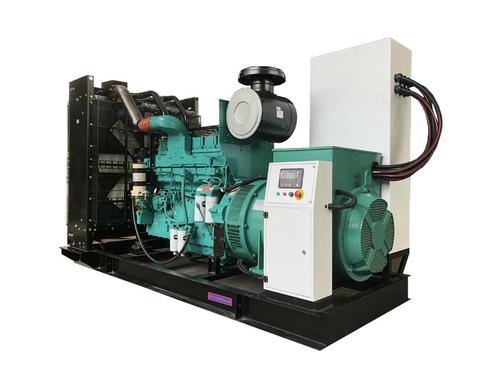

Prime:500KVA(400KW )Standby:550KVA(440KW)

* Composed of Cummins,Deutz,SDEC,Perkins diesel engine and Stamford or Kusing, Marathon, Leroy somer alternator;

*24V DC start motor and storage battery;

*Brushless, Self-excited, IP23, insulation class H alternator;

*50℃ radiator as standard;

*Digitalstart panel control system as standard, digital auto-start panel is optional;

* 8-hour operation base tank;

*Optional open type or silent type;

*All generator sets are gone through rigorous testing before being released to the market place, including 50% load, 75% load, 100% load , 110% load and all protection function (overspeed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)

Add to wishlist Add to compare




Prime Power is available for an unlimited number of annual operating hours in variable load applications,in accordance with ISO8528-1


The Standby Power is applicable for supplying emergency power for the duration of utility power interruption.No overload,utility parallel or negotiated outage operation capacity is available at this rating

Generator set Genset Model CK34000 DK34000 PK34000 SK34000
Engine Brand Cummins Deutz Perkins SDEC
Engine Model QSZ13-G3/KTA19-G4 BF8M1015CP-LA G1A 2506C-E15TAG2 SC25G690D2
Alternator Moedel S354G400D2
Controller Comap/Deep sea Kusing 6132
Switch CHNT 800A
Internal protection IP22
Rate current(A) 720
Specific Fuel Consumption(G/KW.H)@100% Load 192 196 202 205
Engine Model QSZ13-G3/KTA19-G4 BF8M1015CP-LA G1A 2506C-E15TAG2 SC25G690D2
NO. of Cylinder 6 8 6 12
Cylinder Type L L L V
RPM 1500
Bore (mm) 130 132 137 135
Stroke(mm) 163 145 171 150
Speed Governor Electronic Electronic Electronic Electronic
Start system(VDC) 24 24 24 24
Lub Oil Specification CF/ 15W40 CF/15W40 CF/15W40 CF/15W40
Displacement(Ltrs) 13 15.9 15.2 25.8
Lub Oil Sump Capacity(Ltrs) 62 48 62 55-65
Coolant Capacity(Ltrs) 23.1(only engine) 21(only engine) 62(only engine) 48
Air inspiration Turbocharged Turbocharged Turbocharged Turbocharged
Alternator Phase 3
Brand Kusing
Model S354G400D2
3 Phase Voltage(1 Phase) Volts 380-415(220-240)
RPM/Frequency 1500rpm/50hz
Power Factor(%) 0.8(lagging)
Voltage Tolerance(+/- %) 1
Insulation Class H
Weight Open (KG) 3680 3680 3451 4300
Silent(KG) 4480 4480 5230 N/A
Size OPen(L*W*H)mm 3320*1280*1950 3300*1150*1990 3300*1150*1990 3548*1400*1992
Silent(L*W*H)mm 4800*1700*2300 4800*1700*2300 4800*1700*2250 20FT container
Noise(DBA) Open NA NA NA NA
Noise( 7M at the Genset) 80 80 80 80
Fuel Tank Capacity SUPPORT TO RUN 8 TO 10 HOURS

OPEN                                                                                                  SILENT
