Prime:250KVA(200KW )Standby:275KVA(220KW)

*Composed of Cummins,YTO,Perkins,Deutz,SDEC,Weichai diesel engine and Stamford or Kusing, Marathon, Leroy somer alternator;

*24V DC start motor and storage battery;

*Brushless, Self-excited, IP23, insulation class H alternator;

*50℃ radiator as standard;

*Digitalstart panel control system as standard,

*digital auto-start panel is optional;

* 8-hour operation base tank;

*Optional open type or silent type;

*All generator sets are gone through rigorous testing before being released to the market place, including 50% load, 75% load, 100% load , 110% load and all protection function (overspeed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)

Add to wishlist Add to compare




Prime Power is available for an unlimited number of annual operating hours in variable load applications,in accordance with ISO8528-1


The Standby Power is applicable for supplying emergency power for the duration of utility power interruption.No overload,utility parallel or negotiated outage operation capacity is available at th

Generator set Genset Model CK32000 PK32000 K32000 DK32000 SK3000 WCK32000
Engine Brand Cummins Perkins YTO Deutz SDEC Weichai
Engine Model 6LTAA8.9-G2/MTA11-G2 1206A-E70TTAG3 YM6S4L-D TCD8.0 SC9D340D2 WP10D264E200
Alternator Moedel S274G200E
Controller Kusing 6132/Comap/Deep sea Comap/Deep sea Kusing 6132 Comap/Deep sea Kusing 6132
Switch CHNT 400A
Internal protection IP22
Rate current(A) 360
Specific Fuel Consumption(G/KW.H)@100% Load 197 216 225 195 198
Engine Model 6LTAA8.9-G2/MTA11-G2 1206A-E70TTAG3 YM6S4L-D TCD8.0 SC9D340D2
NO. of Cylinder 6 6 6 6 4 6
Cylinder Type L V L L L L
RPM 1500
Bore (mm) 114/125 105 126 110 114
Stroke(mm) 145/147 135  130 136 144
Speed Governor Electronic Electronic Electronic Electronic Electronic
Start system(VDC) 24 24 24 24 24
Lub Oil Specification CF/ 15W40 CF/15W40 CF/15W40 CF/15W40 CF/15W40 CF/15W40
Displacement(Ltrs) 8.9/10.3 7.01 9.726 7.8 8.9
Lub Oil Sump Capacity(Ltrs) 23.8 41 16 31 22-25
Coolant Capacity(Ltrs) 11.1/12.9(only engine) 13-16(only engine) 23(only engine) 9.8(only engine) 12(only engine)
Air inspiration Turbocharged Turbocharged Turbocharged Turbocharged Turbocharged
Alternator Phase 3
Brand Kusing
Model S274G200E
3 Phase Voltage(1 Phase) Volts 380-415(220-240)
RPM/Frequency 1500rpm/50hz
Power Factor(%) 0.8(lagging)
Voltage Tolerance(+/- %) 1
Insulation Class H
Weight Open (KG) 2150 1927 2690 2150 1750
Silent(KG) 3380 2670  3390  3380 3390
Size OPen(L*W*H)mm 2650*1050*1540 2800*900*1630 2800*1100*1600 2480*950*1630 2706*1040*1486
Silent(L*W*H)mm 3800*1300*1900 3800*1300*1900 4200*1400*2100 3800*1300*1900 4200*1400*2100
Noise( 7M at the Genset) 80 80 80 80 80 80
Fuel Tank Capacity SUPPORT TO RUN 8 TO 10 HOURS

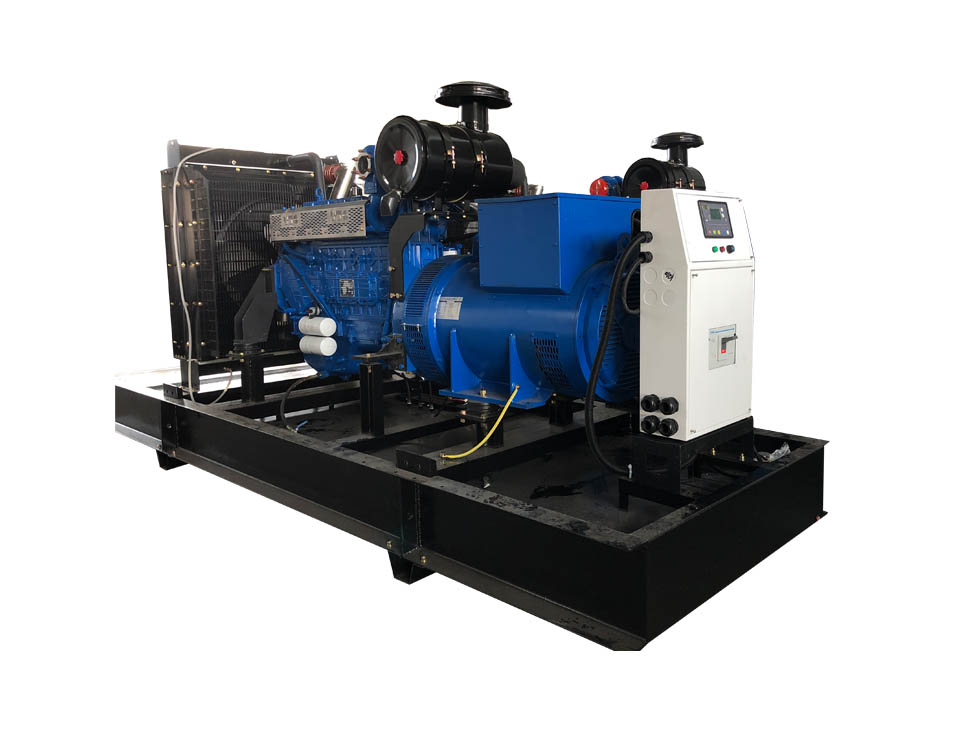

OPEN                                                                                               SILENT
