Prime:200KVA(160KW )Standby:220KVA(176KW)

* Composed of Cummins,YTO,Perkins,SDEC,Deutz diesel engine and Stamford or Kusing, Marathon, Leroy somer alternator;

*12/24V DC start motor and storage battery;

*Brushless, Self-excited, IP23, insulation class H alternator;

*50℃ radiator as standard;

*Digitalstart panel control system as standard, digital auto-start panel is optional;

* 8-hour operation base tank;

*Optional open type or silent type;

*All generator sets are gone through rigorous testing before being released to the market place, including 50% load, 75% load, 100% load , 110% load and all protection function (overspeed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)

Add to wishlist Add to compare




Prime Power is available for an unlimited number of annual operating hours in variable load applications,in accordance with ISO8528-1


The Standby Power is applicable for supplying emergency power for the duration of utility power interruption.No overload,utility parallel or negotiated outage operation capacity is available at this rating

Generator set Genset Model CK31600 PK31600 K31600 SK31600 DK31600
Engine Brand Cummins Perkins YTO SDEC Deutz
Engine Model 6CTA8.3-G2 1106A-70TAG4 YM6H4L-D SC8D280D2 BF6M1013FCG3
Alternator Moedel S274G160D
Controller Kusing 6132 Comap/Deep sea
Switch CHNT 400A
Internal protection IP22
Rate current(A) 288
Specific Fuel Consumption(G/KW.H)@100% Load 212 205 230 200 212
Engine Model 6CTA8.3-G2 1106A-70TAG4 YM6H4L-D SC8D280D2 BF6M1013FCG3
NO. of Cylinder 6 6 6 6 6
Cylinder Type L V L L L
RPM 1500
Bore (mm) 114 105 126 114 108
Stroke(mm)  135 135 130 135 130
Speed Governor Electronic Electronic Electronic Electronic Electronic
Start system(VDC) 24 12 24 24 12
Lub Oil Specification CF/ 15W40 CF/15W40 CF/15W40 CF/15W40 CF/15W40
Displacement(Ltrs) 8.3 7.01 9.726 8.3 7.15
Lub Oil Sump Capacity(Ltrs) 19.5 16.5 17 15-19 31
Coolant Capacity(Ltrs) 12.3(only engine) 16.5(only engine) 23(only engine) 12(only engine) 9.8(only engine)
Air inspiration Turbocharged Turbocharged Turbocharged Turbocharged Turbocharged
Alternator Phase 3
Brand Kusing
Model S274G160D
3 Phase Voltage(1 Phase) Volts 380-415(220-240)
RPM/Frequency 1500rpm/50hz
Power Factor(%) 0.8(lagging)
Voltage Tolerance(+/- %) 1
Insulation Class H
Weight Open (KG) 1250 1707 1250 1520 1707
Silent(KG) 2015 2202 2015 2015 2300
Size OPen(L*W*H)mm 2600*980*1400 2600*900*1400 2600*950*1400 2515*980*1500 2200*950*1400
Silent(L*W*H)mm 3600*1200*1800 3600*1200*1600 3800*1200*1900 3800*1200*1900 3600*1200*1600
Noise(DBA) Open NA NA NA NA NA
Noise( 7M at the Genset) 80 80 80 80 80
Fuel Tank Capacity SUPPORT TO RUN 8 TO 10 HOURS

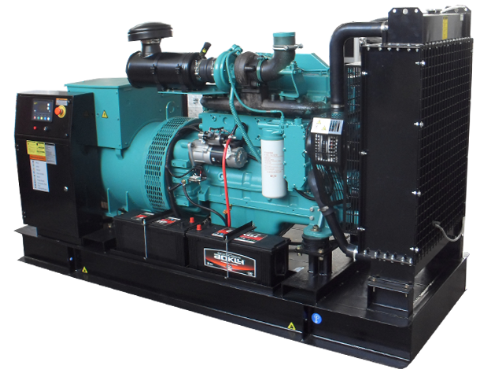

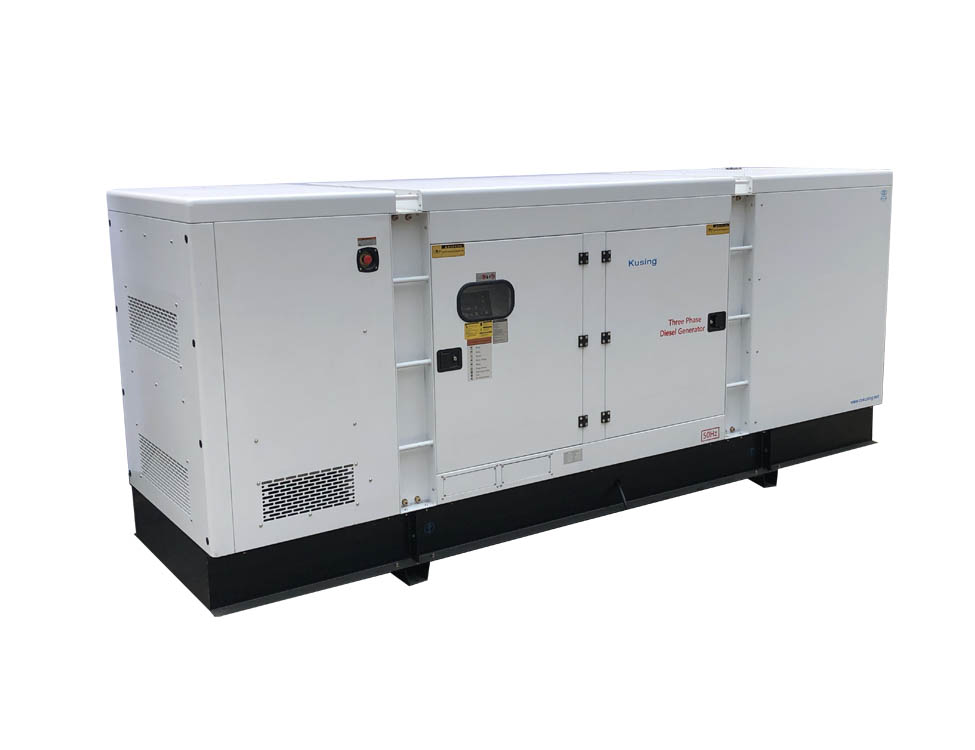

OPEN :                                                                                            SILENT:
