Diesel Generator-Prime 10KW/12.5KVA
RATINGS DEFINITION：
PrimePower：Prime Power is available for an unlimited number of annual operating hours in variable load applications,in accordance with ISO8528-.
Standby Power:
The Standby Power is applicable for supplying emergency power for the duration of utility power interruption.No overload,utility parallel or negotiated outage operation capacity is available at this rating
Description
- Composed of Perkins diesel engine and Stamford or Kusing, Marathon, Leroy somer alternator;
- 12V DC start motor and storage battery;
- Brushless, Self-excited, IP23, insulation class H alternator;
- 50℃ radiator as standard;
- Digitalstart panel control system as standard, digital auto-start panel is optional;
- 8-hour operation base tank;
- Optional open type or silent type;
- All generator sets are gone through rigorous testing before being released to the market place, including 50% load, 75% load, 100% load , 110% load and all protection function (overspeed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)
TECHANICAL DATA
| Generator set | Genset Model | PK30100 | |||
| Engine Brand | Perkins | ||||
| Engine Model | 403D-15G | ||||
| Alternator Moedel | S164G108B3 | ||||
| Controller | Kusing 6122 | ||||
| Switch | CHNT 63A | ||||
| Internal protection | IP22 | ||||
| Rate current(A) | 18 | ||||
| Specific Fuel Consumption(G/KW.H)@100% Load | 264 | ||||
| Engine | Model | 403D-15G | |||
| NO. of Cylinder | 3 | ||||
| Cylinder Type | V | ||||
| RPM | 1500 | ||||
| Bore (mm) | 84 | ||||
| Stroke(mm) | 90 | ||||
| Speed Governor | Mechanical | ||||
| Start system(VDC) | 12 | ||||
| Lub Oil Specification | CF/15W40 | ||||
| Displacement(Ltrs) | 1.496 | ||||
| Lub Oil Sump Capacity(Ltrs) | 6 | ||||
| Coolant Capacity(Ltrs) | 6(only engine) | ||||
| Air inspiration | Natural | ||||
| Alternator | Phase | 3 | |||
| Brand | Kusing | ||||
| Model | S164G108B3 | ||||
| 3 Phase Voltage(1 Phase) Volts | 380-415(220-240) | ||||
| RPM/Frequency | 1500rpm/50hz | ||||
| Power Factor(%) | 0.8(lagging) | ||||
| Voltage Tolerance(+/- %) | 1 | ||||
| Insulation Class | H | ||||
| Weight | Open (KG) | 456 | |||
| Silent(KG) | 670 | ||||
| Size | OPen(L*W*H)mm | 1140*550*1020 | |||
| Silent(L*W*H)mm | 1500*800*1100 | ||||
| Noise(DBA) | Open | NA | |||
| Noise( 7M at the Genset) | 80 | ||||
| Fuel Tank | Capacity | SUPPORT TO RUN 8 TO 10 HOURS | |||

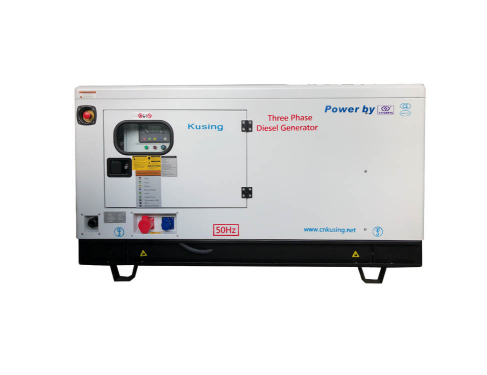

Open： Silent：
