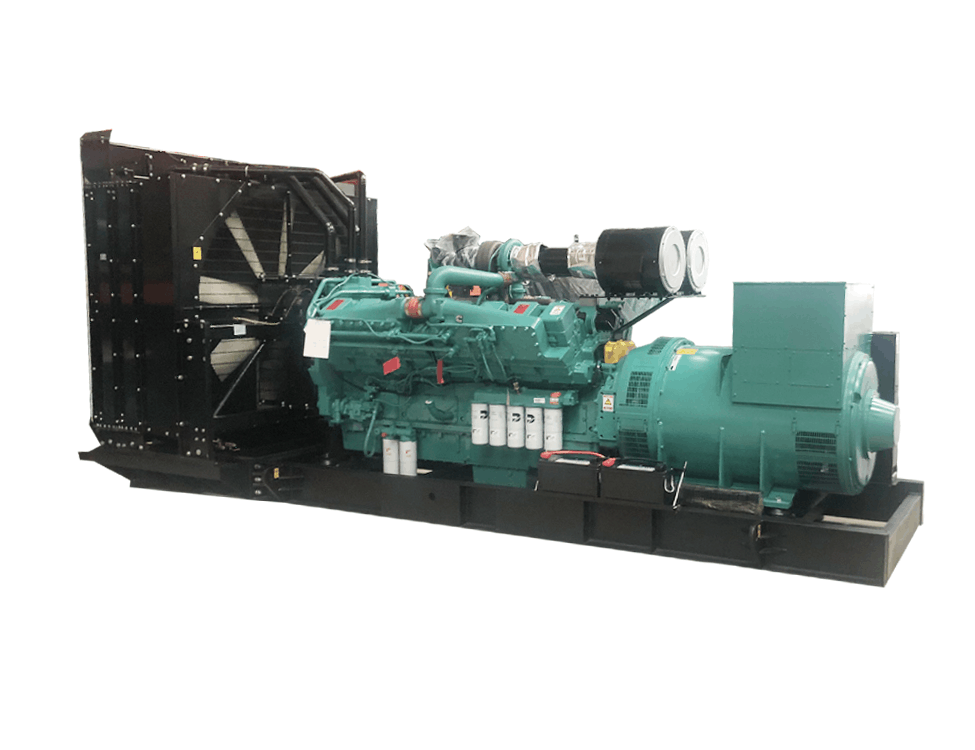

Prime:2500KVA(2000KW )Standby:2750KVA(2200KW)

*Composed of Cummins diesel engine and Stamford or Kusing, Marathon, Leroy somer alternator;

*24V DC start motor and storage battery;

*Brushless, Self-excited, IP23, insulation class H alternator;

*50℃ radiator as standard;

*Digitalstart panel control system as standard, digital auto-start panel is optional;

* 8-hour operation base tank;

*Optional open type or silent type;

*All generator sets are gone through rigorous testing before being released to the market place, including 50% load, 75% load, 100% load , 110% load and all protection function (overspeed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)

Add to wishlist Add to compare

Description



RATING DEFINITION

PRIME POWER

Prime Power is available for an unlimited number of annual operating hours in variable load applications,in accordance with ISO8528-1

STAND BY POWER

The Standby Power is applicable for supplying emergency power for the duration of utility power interruption.No overload,utility parallel or negotiated outage operation capacity is available at this rating

TECHANICAL DATA
Generator set Genset Model CK320000
Engine Brand Cummins
Engine Model QSK78-G18
Alternator Moedel TCU528A
Controller Comap/Deep sea
Switch CHNT 4000A
Internal protection IP22
Rate current(A) 3600
Specific Fuel Consumption(G/KW.H)@100% Load 204
Engine Model QSK78-G18
NO. of Cylinder 18
Cylinder Type V
RPM 1500
Bore (mm) 170
Stroke(mm) 190
Speed Governor ECM
Start system(VDC) 24
Lub Oil Specification CF/15W40
Displacement(Ltrs) 77.6
Lub Oil Sump Capacity(Ltrs) 352
Coolant Capacity(Ltrs) 167(engine only)
Air inspiration Turbocharged
Alternator Phase 3
Brand EVO
Model TCU528A
3 Phase Voltage(1 Phase) Volts 380-415(220-240)
RPM/Frequency 1500rpm/50hz
Power Factor(%) 0.8(lagging)
Voltage Tolerance(+/- %) 1
Insulation Class H
Weight Open (KG) No applicable
Silent(KG) No applicable
Size OPen(L*W*H)mm 6180*2350*2650

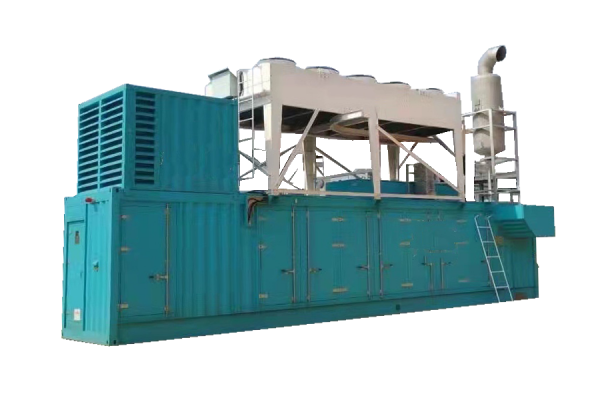

Silent(L*W*H)mm 40’ HQ CONTAINER
Noise(DBA) Open NA
Noise( 7M at the Genset) 80
Fuel Tank Capacity SUPPORT TO RUN 8 TO 10 HOURS

OPEN
